Aug 26, 2025
The core components of gas mask canisters vary significantly depending on the protection target (A/B/E/K series). Essentially, "specific components are used to address the chemical properties of specific gases"—a precision that is vital when these canisters are paired with Powered Air-Purifying Respirators, which cannot compensate for mismatched or ineffective filter materials. The following is an explanation corresponding to the gas type classification mentioned earlier, with a focus on relevance to PAPR:
1. For Series A (Organic Gases/Vapors, e.g., Benzene, Gasoline): Activated Carbon as the Core
Main Component: High-specific-surface-area activated carbon (mostly coconut shell carbon or coal-based carbon, with a porosity of over 90%. The surface area of 1 gram of activated carbon is equivalent to that of a football field).
Working Principle: Utilizes the "physical adsorption" of activated carbon—organic gas molecules are adsorbed in the micropores of activated carbon due to "van der Waals forces" and cannot enter the breathing zone with the airflow. This makes it ideal for use in papr powered air purifying respirators deployed in painting or solvent-handling tasks, where continuous exposure to organic vapors requires reliable, long-lasting adsorption.
Upgraded Optimization: For low-boiling-point organic gases in Series A3 (e.g., methane, propane, which are extremely volatile), "impregnated activated carbon" (added with small amounts of substances such as silicone) is used to enhance the adsorption capacity for small-molecule organic gases—critical for positive pressure air purifying respirator used in oil refineries or natural gas processing plants.
2. For Series B (Inorganic Gases/Vapors, e.g., Chlorine, Sulfur Dioxide): Chemical Adsorbents as the Main Component
Main Component: Impregnated activated carbon + metal oxides (e.g., copper sulfate, potassium permanganate, calcium hydroxide).
Working Principle: Most inorganic gases are highly oxidizing or irritating and need to be converted into harmless substances through "chemical reactions". For example:
Chlorine (Cl₂) reacts with calcium hydroxide to form calcium chloride (a harmless solid);
Sulfur dioxide (SO₂) is oxidized to sulfate (fixed in the filter material after dissolving in water) by reacting with potassium permanganate.
This chemical stability is a must for Powered Air-Purifying Respirators used in chemical manufacturing plants, where sudden spikes in inorganic gas concentrations demand rapid, effective neutralization.
3. For Series E (Acidic Gases/Vapors, e.g., Hydrochloric Acid, Hydrogen Fluoride): Alkaline Neutralizers
Main Component: Potassium hydroxide (KOH), sodium hydroxide (NaOH), or sodium carbonate (supported on activated carbon or inert carriers).
Working Principle: Utilizes "acid-base neutralization reaction" to convert acidic gases into salts (harmless and non-volatile). For example:
Hydrochloric acid (HCl) reacts with potassium hydroxide to form potassium chloride (KCl) and water;
Hydrogen fluoride (HF) reacts with sodium hydroxide to form sodium fluoride (NaF, a solid), preventing it from corroding the respiratory tract.
This corrosion-resistant formulation is essential for Powered Air-Purifying Respirators used in 酸洗 (pickling) workshops or semiconductor manufacturing, where acidic vapors pose both health and equipment risks.
4. For Series K (Ammonia and Amine Gases/Vapors, e.g., Ammonia, Methylamine): Acidic Adsorbents
Main Component: Phosphoric acid (H₃PO₄)-impregnated activated carbon or calcium sulfate.
Working Principle: Ammonia and amines are alkaline gases and are fixed through "acid-base neutralization". For example:
Ammonia (NH₃) reacts with phosphoric acid to form ammonium phosphate ((NH₄)₃PO₄, a solid);
Methylamine (CH₃NH₂) reacts with calcium sulfate to form stable salts that no longer volatilize.
This targeted neutralization is key for Powered Air-Purifying Respirators used in fertilizer plants or cold storage facilities, where ammonia leaks are a common hazard.
III. "Matching Logic" Between Structure and Components: Why Gas Mask Canisters Cannot Be Mixed?
It can be seen from the above content that the "layered structure" and "component selection" of gas mask canisters are completely designed around the "protection target"—a principle that is even more critical when paired with Powered Air-Purifying Respirators, as these devices amplify both the effectiveness of correct canisters and the risks of incorrect ones:
If a Series A (activated carbon) gas mask canister is used to protect against Series E acidic gases with Powered Air-Purifying Respirators, the acidic gases will directly penetrate the activated carbon (no neutralization reaction occurs), and the PAPR’s continuous airflow will deliver these unfiltered gases straight to the user;
If a Series K (acidic adsorbent) gas mask canister is exposed to Series B chlorine (highly oxidizing) in Powered Air-Purifying Respirators, adverse reactions may occur, and even toxic substances may be produced—substances that the PAPR will then circulate into the breathing zone.
This also echoes the "golden rule of selection" mentioned earlier—gas mask canisters of the corresponding series must be selected according to the type of gas in the working environment to ensure that the structure and components truly play their role, especially when integrated with Powered Air-Purifying Respirators.
Conclusion

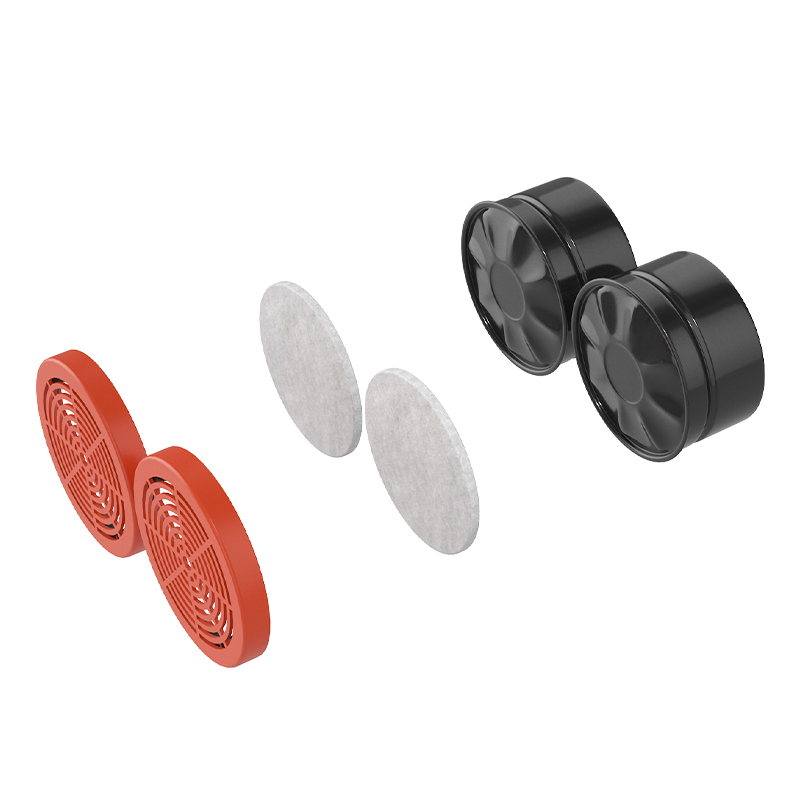

A gas mask canister is not a "single-material container" but a sophisticated combination of "layered structure + targeted components"—one that is engineered to work in harmony with Powered Air-Purifying Respirators. The outer shell ensures sealing for PAPR airflow, the preprocessing layer filters impurities to maintain PAPR efficiency, and the core adsorption/neutralization layer accurately addresses specific gases to keep PAPR-supplied air clean. Ultimately, it achieves the protection effect of "preventing harmful gases from entering and allowing clean air to exit".
Understanding these details not only helps us select gas mask canisters more scientifically for standard masks but is even more critical for users of Powered Air-Purifying Respirators—who rely on the canister-PAPR synergy for consistent, reliable protection. It also enables us to more clearly judge "when to replace canisters" during use (e.g., the protection effect will drop sharply after the core adsorption layer is saturated), adding an "awareness line of defense" for respiratory safety—especially for those depending on Powered Air-Purifying Respirators in high-risk environments.If you want know more, please click www.newairsafety.com.
